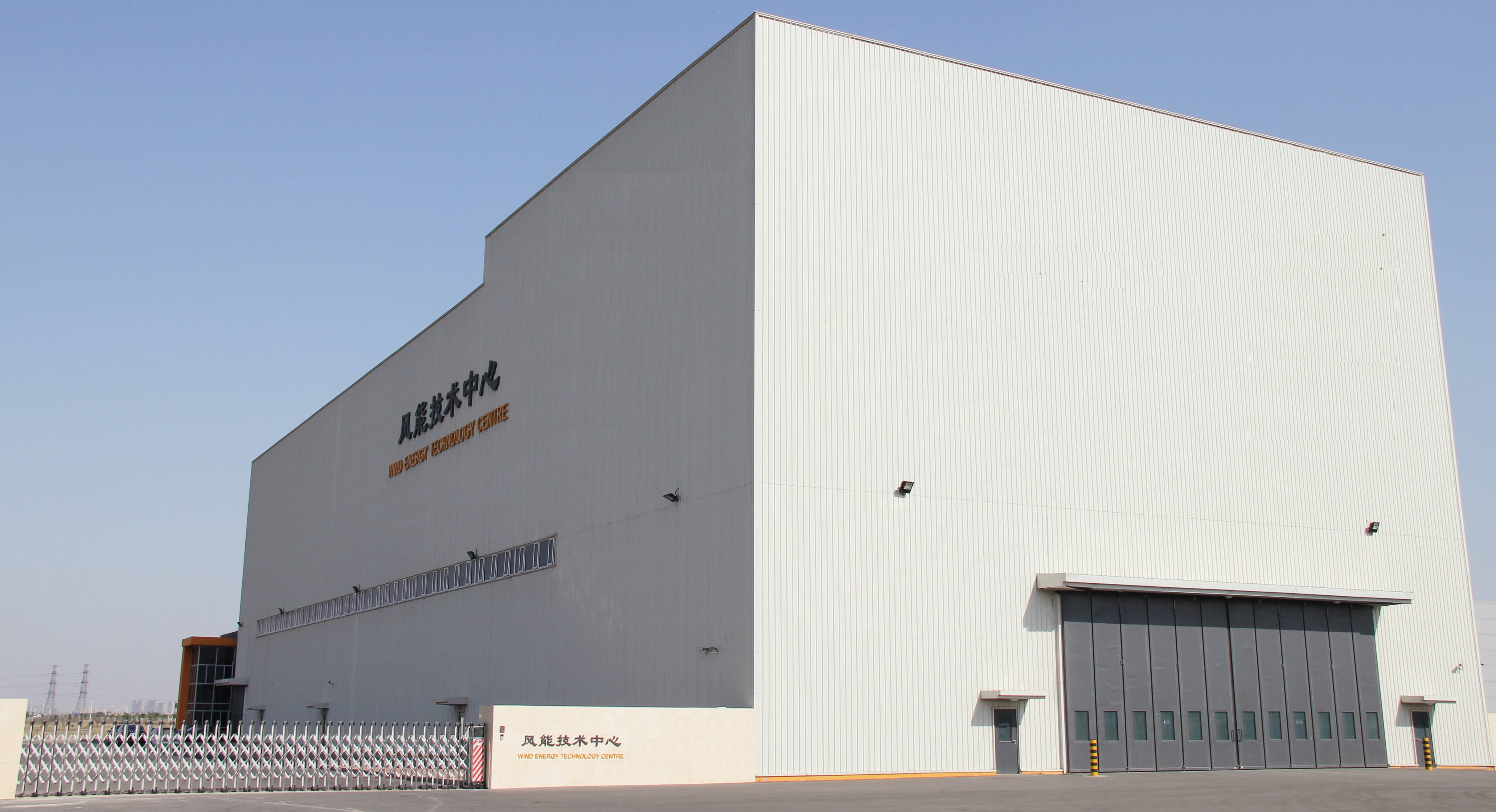

Test Site 1: No.22,Xinxing Road,West District,TEDA, Tianjin,China

Blade Size limit for transportation <71.5m

Test Site 2: No.122,Gaoxin3#Road, Binhai New District, Tianjin,China

Blade Size limit for transportation <120m

Number of test rig: 3

Maximum length: 70m

Maximum BCD: 4000mm

Test Rig Center height: 4.5m

Maximum test load: static test 45 MN ·m; fatigue test ± 15MN ·m

Maximum   height of   workshop : 22m

Rig   Tilt angle : 7/13/14.5 degree

Loading equipment capacity: 2 x100KN   4 x200KN

1# Test Rig:   for Static test

2#, 3# Test Rig:   for Fatigue test

Outdoor test rig for blade to 150m in discussion
